Truck Access

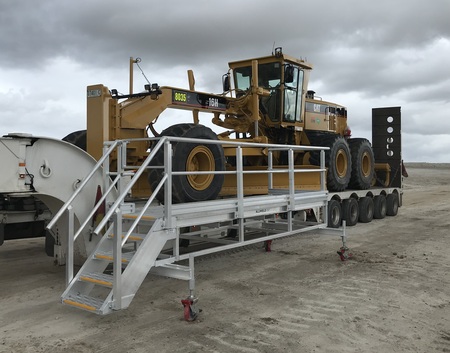

Truck Access Platform in use at Badgerys Creek Airport Construction

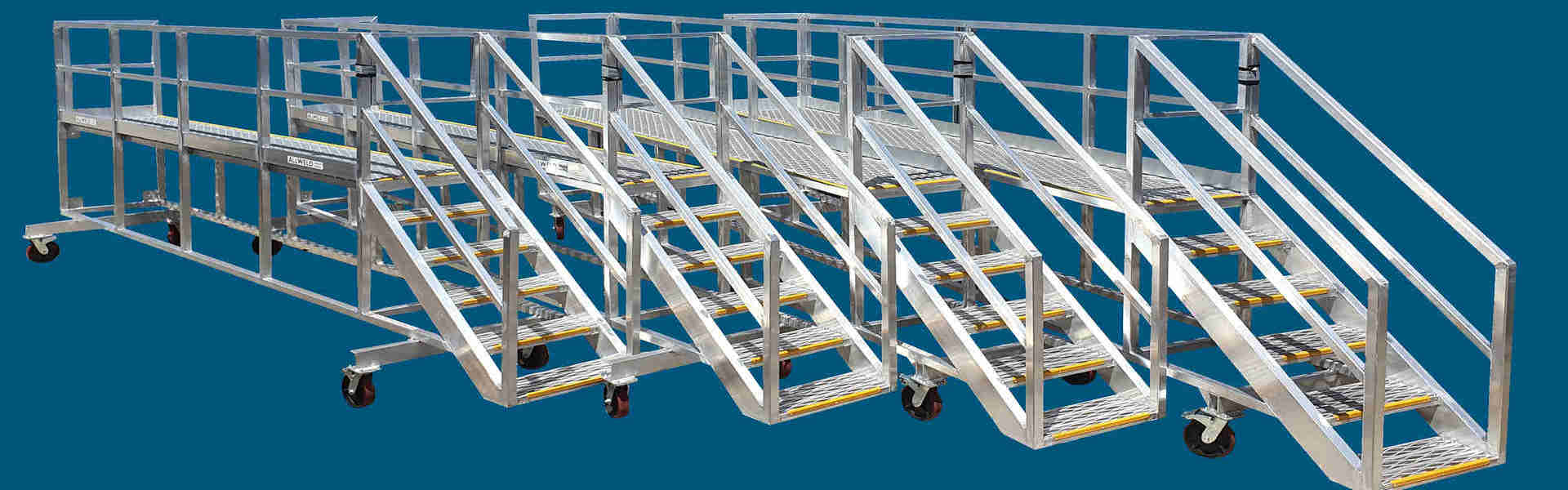

ALLWELD Truck Access Platforms are found all over Australia. Built to spec to suit each job ranging in lengths from 12m down to 2m long and available in heights from 1000mm to 1600mm. Either fabricated in 1 piece or as a knock down version for easier freight
ALLWELD Truck Access Platforms are found all over Australia. Built to spec to suit each job ranging in lengths from 12m down to 2m long and available in heights from 1000mm to 1600mm. Either fabricated in 1 piece or as a knock down version for easier freight
Truck Access and Truck Loading Platform Ladders
Allweld Industrial ladders design and fabricate a variety of different aluminium platforms suitable for washing, accessing or loading trucks. Long access platforms are made from aluminium walkway mesh, have stair access, guards rails, self closing gates and height adjustable 200 diameter castors. High visibility stair nosings adds to the safety aspect.
Allweld truck loading platforms can be used for a variety of jobs including load binding and truck washing. Truck platforms and stands makes the job easier and quicker, but more importantly makes the job safer. Preventing workplace injuries saves you money. For non hard standing areas larger wheels can be fitted to the truck washing platforms to help negotiate rocks & bumps.

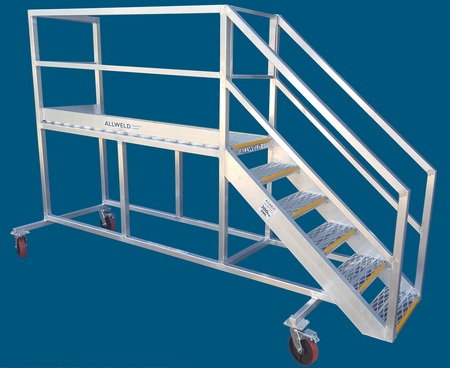

2m Long Truck Access Platform
Specifications
Fully welded 6060 T5 aluminium, Designed in accordance with AS1657
Fabricated in accordance with AS1665, 300kg load rating
Platform 650mm wide x 2000mm long x 1400mm high
Base 1000mm wide (extends 350mm on outside for stability)
Stair access on one end – approx. 45 degrees, High visibility nosings on stair
Self-closing gate at the top of the stair
High visibility anti–slip nosing along open edge of platform
Aluminium walkway mesh stair & platform
Guardrails on both sides of the stair, guardrails on ONE side of platform
Guardrail at end can be unbolted and removed
4 x 200d heavy duty swivel castors with brake
Fully welded 6060 T5 aluminium, Designed in accordance with AS1657
Fabricated in accordance with AS1665, 300kg load rating
Platform 650mm wide x 2000mm long x 1400mm high
Base 1000mm wide (extends 350mm on outside for stability)
Stair access on one end – approx. 45 degrees, High visibility nosings on stair
Self-closing gate at the top of the stair
High visibility anti–slip nosing along open edge of platform
Aluminium walkway mesh stair & platform
Guardrails on both sides of the stair, guardrails on ONE side of platform
Guardrail at end can be unbolted and removed
4 x 200d heavy duty swivel castors with brake

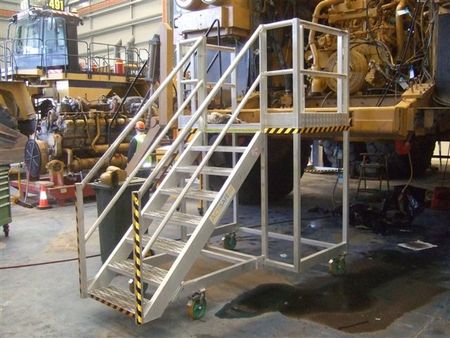

Mobile Dump Truck Access Platform
Stair access, aluminium walkway mesh steps and platform, safety boom gate, 200mm diameter castors with brake, guard rails, all make the job safer and easier. You will wish you had an ALLWELD access platform years ago!

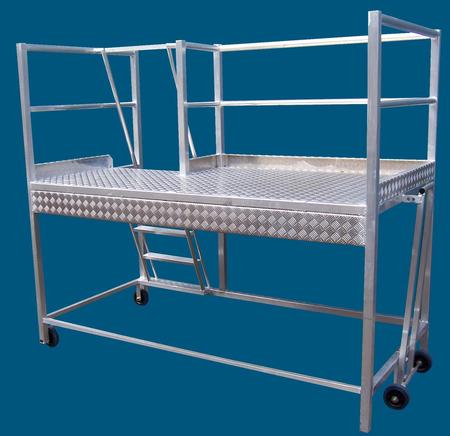

Automatic Tow Lever Truck Access Platform
Specifications
Fully welded 6060 T5 aluminium, designed in accordance with AS1657-2013
Fabricated in accordance with AS1665, 300kg load rating
2.4m x 1.2m x 1.4m high, Chequer plate platform
Tow lever – unit automatically lowers when released
Ladder access with a boom gate at the top
Fully welded 6060 T5 aluminium, designed in accordance with AS1657-2013
Fabricated in accordance with AS1665, 300kg load rating
2.4m x 1.2m x 1.4m high, Chequer plate platform
Tow lever – unit automatically lowers when released
Ladder access with a boom gate at the top

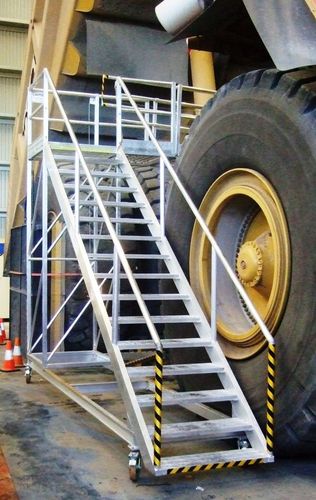

Dump Truck Cantilevered Access Platform
The cantilevered platform is hinged to the main platform and can be raised and lowered with a brake winch to access behind the dump truck's front wheel. Allweld Industrial Ladders design and manufacture access platforms for any purpose.

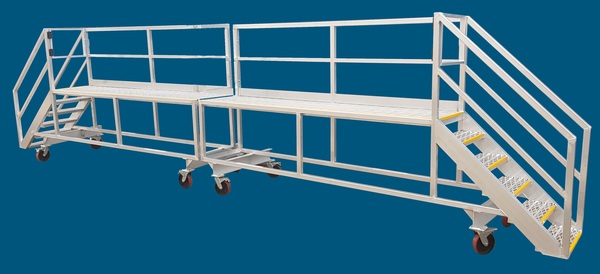

3m Truck Access Platforms Back to Back
A left handed and right handed truck access platform where the end guard rail can be removed and the two units can bolt together "back to back".
Specifications
Fully welded 6060 T5 aluminium, designed in accordance with AS1657
Fabricated in accordance with AS1665, 300kg load rating
Platform 650mm wide x 3000mm long x 1400mm high
Base 1000mm wide (extends 350mm on outside for stability)
Stair access on one end – approx. 45 degrees
High visibility nosings on stair, self-closing gate at the top of the stair
High visibility anti–slip nosing along open edge of platform
Aluminium walkway mesh stair & platform
Guardrails on both sides of the stair, guardrails on ONE side of platform
Guardrail at end can be unbolted and removed, 2 units can be bolted back to back
4 x 200d heavy duty swivel castors with brake
Specifications
Fully welded 6060 T5 aluminium, designed in accordance with AS1657
Fabricated in accordance with AS1665, 300kg load rating
Platform 650mm wide x 3000mm long x 1400mm high
Base 1000mm wide (extends 350mm on outside for stability)
Stair access on one end – approx. 45 degrees
High visibility nosings on stair, self-closing gate at the top of the stair
High visibility anti–slip nosing along open edge of platform
Aluminium walkway mesh stair & platform
Guardrails on both sides of the stair, guardrails on ONE side of platform
Guardrail at end can be unbolted and removed, 2 units can be bolted back to back
4 x 200d heavy duty swivel castors with brake

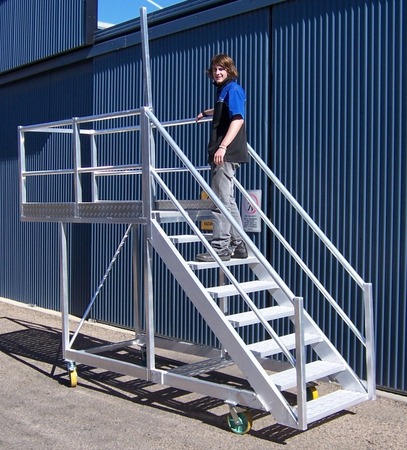

Cantilevered Dozer Access Platform
A mobile cantilevered stair access platform was designed and fabricated by ALLWELD to access over the tracks of a Caterpillar D9 Bulldozer. Aluminium walkway mesh steps and platform, safety boom gate and heavy duty 200 diameter castors.

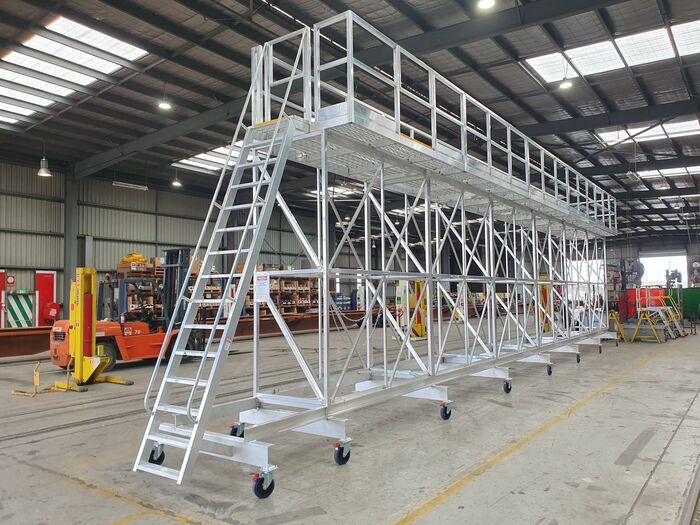

Locomotive Access Platforms
Locomotive maintenance stands welded from aluminium are designed and fabricated by ALLWELD. These lightweight, customised and portable platforms can be built for any purpose.
Aluminium makes an ideal material to fabricate from when a work platform needs to be removed after use and where there may be access constraints. Contact ALLWELD and let them develop a solution to your access issue.
Aluminium makes an ideal material to fabricate from when a work platform needs to be removed after use and where there may be access constraints. Contact ALLWELD and let them develop a solution to your access issue.

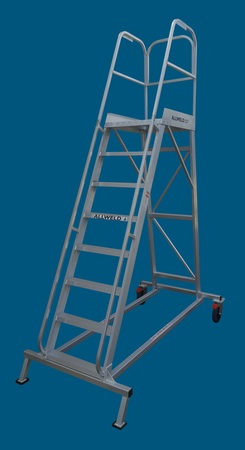

Truck Washing Platform
Easily the most popular platform to wash trucks is the EMOP7 (ALLWELD 7 step Easy Move Order Picker)
Allweld fabricates a variety of models in their Order Picker Range.
Pricing and specifications can be found on the ORDER PICKER LADDER page on this website.
Allweld fabricates a variety of models in their Order Picker Range.
Pricing and specifications can be found on the ORDER PICKER LADDER page on this website.

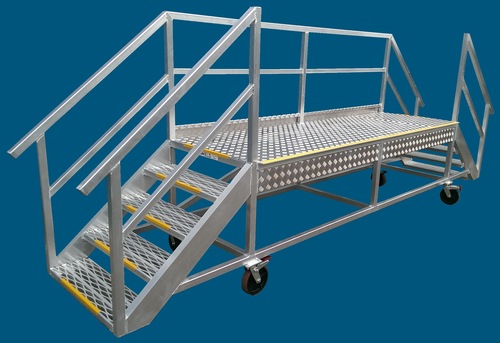

Aluminium Treadplate Platform, Stairs Each End
Specifications
Fully welded 6060 T5 aluminium, Designed in accordance with AS1657
Fabricated in accordance with AS1665, 300kg load rating
Platform 1000mm wide x 3000mm long x 1000mm high
Stair access both ends – approx. 45 degrees
High visibility nosings on stair, high visibility anti–slip nosing along open edge of platform
Aluminium treadplate platform, walkway mesh stair
Guardrails on both sides of the stair, guardrail on ONE side of platform
4 x 200d heavy duty swivel castors with brake
Fully welded 6060 T5 aluminium, Designed in accordance with AS1657
Fabricated in accordance with AS1665, 300kg load rating
Platform 1000mm wide x 3000mm long x 1000mm high
Stair access both ends – approx. 45 degrees
High visibility nosings on stair, high visibility anti–slip nosing along open edge of platform
Aluminium treadplate platform, walkway mesh stair
Guardrails on both sides of the stair, guardrail on ONE side of platform
4 x 200d heavy duty swivel castors with brake

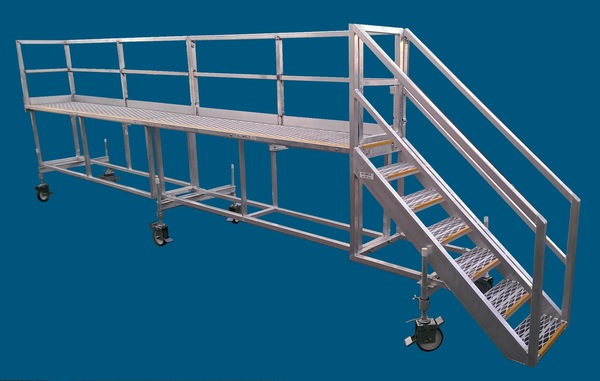

6m Long Truck Loading Platform
Specifications
Fully welded 6060 T5 aluminium, designed in accordance with AS1657-2013
Fabricated in accordance with AS1665, 300kg load rating
Platform 650mm wide x 6000mm long x 1400mm high
Base 1050mm wide (extends 400mm on outside for stability)
Stair access on one end – approx. 45 degrees, high visibility nosings on stair
High visibility anti–slip nosing along open edge of platform
Self-closing gate at the top of the stair
Aluminium walkway mesh stair & platform
Guardrails on both sides of the stair, guardrails on ONE side of platform and at the end
6 x 200d heavy duty swivel castors with brake (4 are height adjustable)
Fully welded 6060 T5 aluminium, designed in accordance with AS1657-2013
Fabricated in accordance with AS1665, 300kg load rating
Platform 650mm wide x 6000mm long x 1400mm high
Base 1050mm wide (extends 400mm on outside for stability)
Stair access on one end – approx. 45 degrees, high visibility nosings on stair
High visibility anti–slip nosing along open edge of platform
Self-closing gate at the top of the stair
Aluminium walkway mesh stair & platform
Guardrails on both sides of the stair, guardrails on ONE side of platform and at the end
6 x 200d heavy duty swivel castors with brake (4 are height adjustable)
